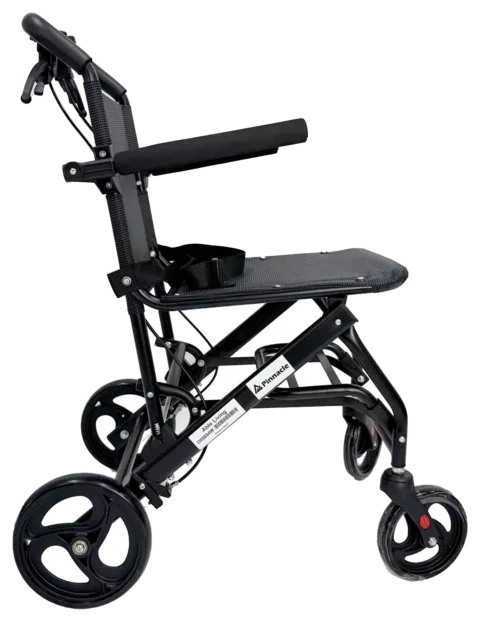

Pinnacle Aero 2 Wheelchair — Fig. 1 — Photo

Overall length 600 mm, width 400 mm, height 880 mm.

Fig. 9 — Overall dimensions (mm)

Safe working load: 100 kg
Seat width: 400 mm
Seat height: 460 mm
Weight: 8.8 kg

Fig. 10 — Key specifications

Pinnacle

Pinnacle Aero 2 Wheelchair

Name: Pinnacle Aero 2 Wheelchair
Brand: Pinnacle
Availability: InStock

SWL 100 kgSeat width 400 mmWeight 8.8 kg All specifications

Ultralight folding transit wheelchair with attendant brakes

$230 inc GST

Dispatch date confirmed when you order

No payment needed to request a quote.

01 Highlights

Safe working load: 100 kg
Seat width: 400 mm
Seat height: 460 mm
Weight: 8.8 kg

Ultralight and foldable
Attendant brakes built into the handles
One-touch fold
Fits in a car boot and can be taken on a plane

02 Specifications

Dimensions & weight
Overall length	600 mm
Overall width	400 mm
Overall height	880 mm
Seat width	400 mm
Seat depth	370 mm
Seat height	460 mm
Backrest height	340 mm

Capacity
Safe working load (SWL)	100 kg
Net weight	8.8 kg

Mechanism & power
Type	Transit wheelchair

Construction & materials
Brakes	Attendant brakes in handles

Features
Folding	Yes, one-touch fold

Specifications as published by the manufacturer.

Spec sheet (web page, printable)

03 Dimensions

Overall length 600 mm, width 400 mm, height 880 mm.

Fig. 9 — Overall dimensions (mm). Bounding dimensions from manufacturer data. Not a product outline.

04 Manufacturer’s description

The Pinnacle Aero2 Wheelchair features a compact, ultralight design for tight spaces, a foldable frame for portability, and attendant brakes for safety. Perfect for travel or daily use, it blends convenience, reliability, and comfort.

Descriptions:

Compact Transit Wheelchair
Ultralight and Foldable
Attendant Brakes

2 Years - Frame
1 Year - Fabric & Components

Features:

Compact Design: Ultralight easy to fold, travel wheelchair and storage
Secure Braking: Handles feature built-in attendant brakes for quick stopping
One-Touch Fold: Quickly folds with a single touch for added convenience
Convenience Design: A portable design wheelchair that can be easily put into the trunk of the car or can be taken on a plane.

Specifications:

Overall Length:	600mm
Overall Width:	400mm
Overall Height:	880mm
Seat Width:	400mm
Seat Depth:	370mm
Seat Height:	460mm
Backrest Height:	340mm
SWL:	100kg
Product Net Weight:	8.8kg
Available for Hire:	Y

SKU	w0517
Barcode #	9324060038
Brand	Pinnacle
Shipping Weight	10.8000kg
Shipping Width	0.280m
Shipping Height	0.720m
Shipping Length	0.280m
Shipping Cubic	0.056448000m3

05 Delivery & returns

Freight: Delivery $80 per item. Remote areas and the NT are priced before you pay.
Access: Tell us about stairs, lifts or tight doorways when you order, so delivery can be planned.
