Pacific Medical Premium Gynaecology Chair — Fig. 1 — Photo

Overall length 1,810 mm, width 700 mm, height adjustable from 570 mm to 1,180 mm.

Fig. 6 — Overall dimensions (mm)

Safe working load: 250 kg
Height range: 570–1,180 mm
Actuation: Electric (foot switch)
Width: 700 mm

Fig. 7 — Key specifications

Pacific Medical SKU GCPRNB

Pacific Medical Premium Gynaecology Chair

Name: Pacific Medical Premium Gynaecology Chair
Brand: Pacific Medical
SKU: GCPRNB
Price: 4300 AUD
Availability: InStock

SWL 250 kgH 570–1,180 mmActuation Electric (foot switch) All specifications

Electric hi-lo and tilt gynaecology chair with headrest section

$4,300 inc GST

Dispatch date confirmed when you order

No payment needed to request a quote.

01 Highlights

Safe working load: 250 kg
Height range: 570–1,180 mm
Actuation: Electric (foot switch)
Width: 700 mm

Electric height and tilt positioning via foot control

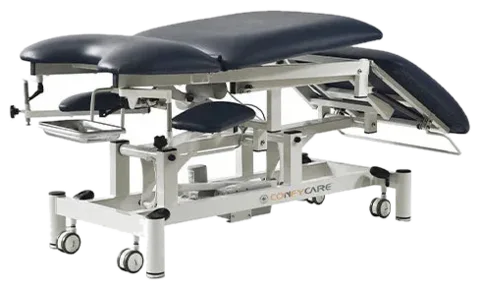

Converts to a full length couch via an additional headrest section
Dual gas strut operated back and head rest
Debris tray and foot pads
7.5 cm retractable castors for safety and mobility
Adjustable feet for uneven surfaces

02 Specifications

Dimensions & weight
Total length	181 cm
Width	70 cm
Headrest length	61 cm
Backrest length	76 cm
Seat section length	40 cm
Minimum height	57 cm
Maximum height	118 cm

Capacity
Weight capacity	250 kg

Mechanism & power
Full height travel time	approx 30 seconds
Actuation	Electric (foot switch)
Motor	TiMotion
Headrest angle	-30 to +47 degrees (dual gas operated struts)
Backrest angle	0 to +71 degrees (dual gas operated struts)
Seat tilt	Motorised, up to +18 degrees

Construction & materials
Castors	7.5 cm retractable castors
Padding thickness	5 cm
Foam density	36 kg/m3
Upholstery	Heavy duty PVC vinyl; fire, stain, mildew, oil, water and wear resistant
Upholstery colour	Navy Blue (GCPRNB)

Specifications as published by the manufacturer.

Spec sheet (web page, printable)

03 Dimensions

Overall length 1,810 mm, width 700 mm, height adjustable from 570 mm to 1,180 mm.

Fig. 6 — Overall dimensions (mm). Bounding dimensions from manufacturer data. Not a product outline.

04 Manufacturer’s description

PACIFIC MEDICAL Premium Gynaecology Chair/GCPRNB

Our premium gynaecology chair GCPRNB provides for electric positioning of height & tilt through a foot control ensuring practitioner comfort. This chair has been designed with an additional headrest section transforming to a full length couch for most general examinations & minor treatments.

Features:

Electric Hi Lo operation by foot switch
Electric seat tilt operation by foot switch
Dual gas strut operated back & head rest
Debris Tray
Foot Pads
Sleek design with rounded frame legs for safety
Adjustable feet for uneven surfaces
7.5cm retractable castors for safety and mobility
Reliable TiMotion motor
Comfortable foam padding

Specification:

Total Length: 181cm
Width: 70cm
Headrest length: 61cm
Backrest length: 76cm
Seat section length: 40cm
Adjustable headrest through dual gas operated struts from -30 to +47 Degrees
Adjustable backrest through dual gas operated struts from 0 to +71 Degrees
Adjustable motorised seat tilt up to +18 Degrees
Height range from 57cm to 118cm in approx 30 seconds
Padding thickness 5cm
Foam Density: 36kg/m3
Upholstery: Heavy duty PVC vinyl that is fire, stain, mildew, oil, water and wear resistant
Weight Capacity: 250KG

ORDER CODES:
GCPRNB – Navy Blue

SHIPPING: $200 for Metro cities only, Melbourne, Sydney and Brisbane. Any other cities and regional towns - please contact us for freight cost.

MAINTENANCE: Please make sure your table is serviced yearly to ensure your table functions to its optimum. Lubrication of pivot points and moving points on your table must be done on a regular basis.
