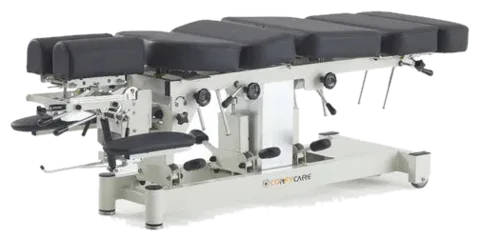

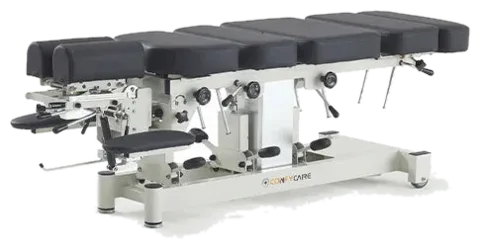

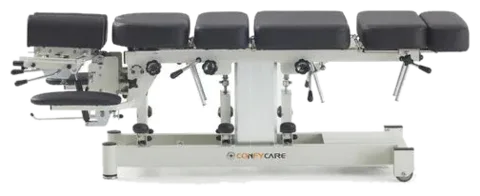

Pacific Medical Premium Chiropractic Table — Fig. 1 — Photo

Safe working load: 225 kg
Height range: 600–800 mm
Actuation: Electric (foot switch)

Fig. 12 — Key specifications

Pacific Medical

Pacific Medical Premium Chiropractic Table

Name: Pacific Medical Premium Chiropractic Table
Brand: Pacific Medical
Availability: InStock

SWL 225 kgH 600–800 mm All specifications

Electric column-lift chiropractic table with four foot-operated drop sections

$6,500 inc GST

Dispatch date confirmed when you order

No payment needed to request a quote.

01 Highlights

Safe working load: 225 kg
Height range: 600–800 mm
Actuation: Electric (foot switch)

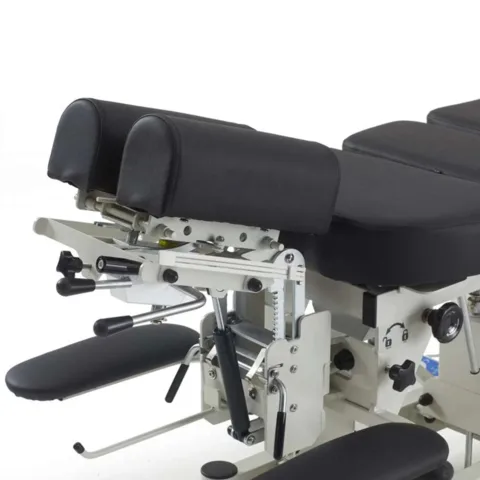

Four foot-activated drop sections with hand tensioning
Electric height adjustment by foot switch
Premium column lift

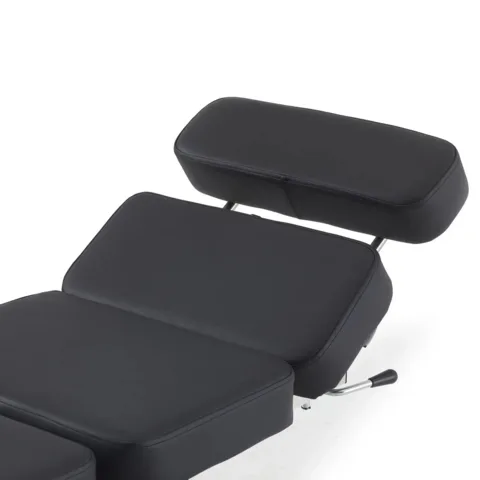

Height and width adjustable padded headrest
Extendable padded footrest
8 cm thick foam padding

02 Specifications

Dimensions & weight
Total length	178 cm
Width	54-65 cm
Minimum height	60 cm
Maximum height	80 cm

Capacity
Weight capacity	225 kg

Mechanism & power
Actuation	Electric (foot switch)
Lift	Premium column lift
Motor	TiMotion
Headrest height adjustment	10 cm
Cervical angle	+25 to -20 degrees
Thoracic angle	to +25 degrees
Lumbar angle	to +30 degrees
Pelvic angle	to +30 degrees
Seat rest angle	to +10 degrees
Backrest angle	to +25 degrees

Construction & materials
Wheels	5 cm wheels
Padding thickness	8 cm
Foam density	110 g/m2
Upholstery	Heavy duty PVC vinyl; fire, stain, mildew, oil, water and wear resistant
Upholstery colours	Navy Blue (CTPRNB), Black (CTPRBL)

Features
Drop sections	Four: Cervical, Thoracic, Lumbar, Pelvic

Specifications as published by the manufacturer.

Spec sheet (web page, printable)

03 Manufacturer’s description

PACIFIC MEDICAL Premium Chiropractic Table with 4 Foot Operated Drop Sections

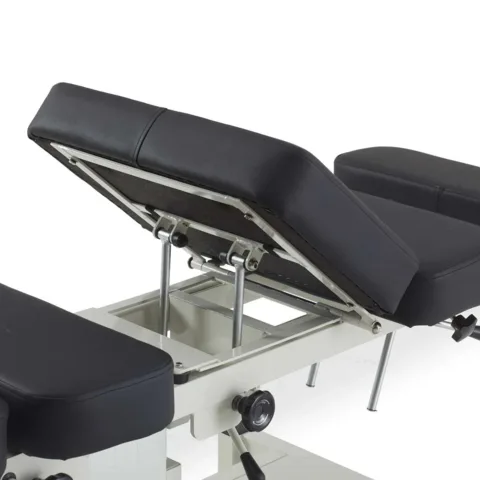

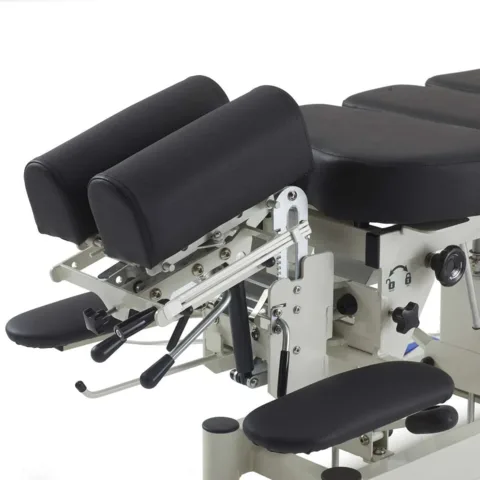

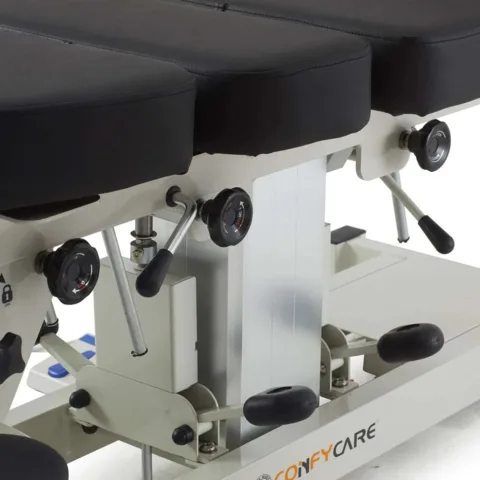

This Chiropractic table is our new premium table. Boasting a premium column lift eliminating any lifting mechanism. All Cervical, Thoracic, Lumbar and Pelvic drops are operated by foot activation with the tensioning done by hand. This allows easy activation for the practitioner. A premium quality & luxury product.

Features:

Electric Hi Lo operation by foot switch
Height and width adjustable padded headrest
Extendable padded footrest
Luxurious and comfortable table
Sleek design with two rounded frame legs and two fixed wheels
Adjustable feet for uneven surfaces
Reliable TiMotion motor
Thick foam padding

Specification:

Total Length: 178cm
Width: 54-65cm
Headrest height adjustment: 10cm
Four drop sections: Cervical, Thoracic, Lumbar, Pelvic
Adjustable angle of cervical from +25 to -20 Degrees
Adjustable angle of thoracic to +25 Degrees
Adjustable angle of lumbar to +30 Degrees
Adjustable angle of pelvic to +30 Degrees
Adjustable angle of seat rest to +10 Degrees
Adjustable angle of backrest to +25 Degrees
Height range from 60cm to 80cm
5cm wheels
Padding thickness 8cm
Foam Density: 110g/m2
Upholstery: Heavy duty PVC vinyl that is fire, stain, mildew, oil, water and wear resistant
Weight Capacity: 225KG

ORDER CODES:
CTPRNB – Navy Blue
CTPRBL – Black

SHIPPING: $200 for Metro cities only, Melbourne, Sydney and Brisbane. Any other cities and regional towns - please contact us for freight cost.

MAINTENANCE: Please make sure your table is serviced yearly to ensure your table functions to its optimum. Lubrication of pivot points and moving points on your table must be done on a regular basis.

04 Delivery & returns

Freight: Delivery $200 per item. Remote areas and the NT are priced before you pay.
Access: Tell us about stairs, lifts or tight doorways when you order, so delivery can be planned.
