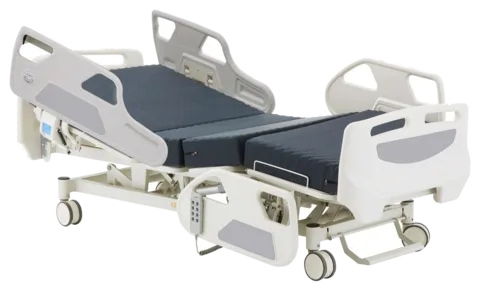

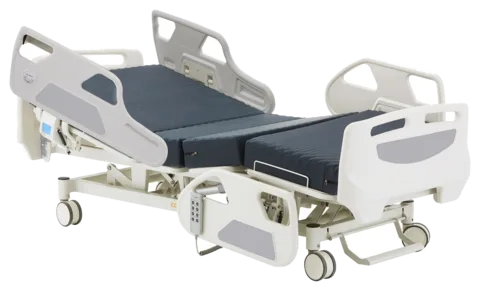

Three Function Hospital Bed — Fig. 1 — Photo

Overall length 2,200 mm, width 1,020 mm, height adjustable from 440 mm to 740 mm.

Fig. 5 — Overall dimensions (mm)

Safe working load: 225 kg
Height range: 440–740 mm
Actuation: Electric, by handset
Functions: 3

Fig. 6 — Key specifications

Pacific Medical SKU HB3

Three Function Hospital Bed

Name: Three Function Hospital Bed
Brand: Pacific Medical
SKU: HB3
Price: 3190 AUD
Availability: InStock

SWL 225 kgH 440–740 mmFunctions 3 functions All specifications

Electric 3-function hospital bed with auto contour

$3,190 inc GST

Dispatch date confirmed when you order

No payment needed to request a quote.

01 Highlights

Safe working load: 225 kg
Height range: 440–740 mm
Actuation: Electric, by handset
Functions: 3

Handset control with integral function lockout

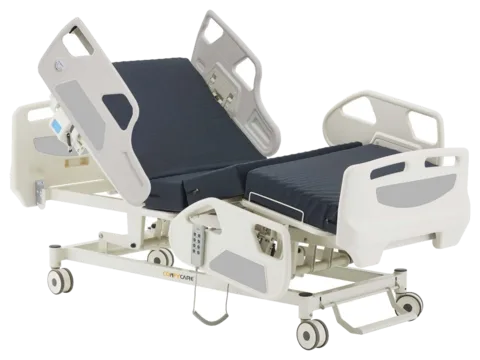

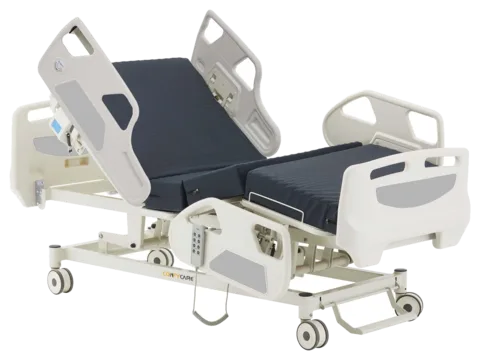

Auto contour: backrest and knee break adjust together
Removable head and foot boards
Drainage bag holders on both sides
Heavy-duty IV pole
Foam mattress included

02 Specifications

Dimensions & weight
Overall length	220cm
Overall width	102cm
Minimum height	44cm
Maximum height	74cm
Hoist clearance	16cm
Mattress platform length	195cm
Mattress platform width	90cm
Mattress size	195 x 90 x 10cm

Capacity
Safe working load	225KG

Mechanism & power
Functions	Three function
Operation	Electric, by handset
Backrest angle	0-73 degrees
Knee break angle	0-30 degrees
Leg angle	0-16 degrees

Construction & materials
Side rails	Four ABS safety side rails
Castors	125mm heavy duty central locking
Braking	Central locking castors

Features
Included	Foam mattress

Specifications as published by the manufacturer.

Spec sheet (web page, printable)

03 Dimensions

Overall length 2,200 mm, width 1,020 mm, height adjustable from 440 mm to 740 mm.

Fig. 5 — Overall dimensions (mm). Bounding dimensions from manufacturer data. Not a product outline.

04 Manufacturer’s description

A strong, reliable and high quality three function hospital bed. Well featured including removeable boards, removable ABS side rails, drainage bag holders, iv pole & 125mm central lock castors. An ideal product for aged care and hospital facilities.

Three Function Hospital Bed Features:

Electric operation by handset with integral function lockout
Electrically operated backrest, height & knee break angle
Removable head & foot board
Four ABS safety side rails
Four drainage bag holders on both sides
Heavy duty IV pole
Auto contour simultaneous adjustment of backrest & knee break
125mm heavy duty central locking castors
Foam mattress included

Three Function Hospital Bed Specification:

Overall length: 220cm
Overall width: 102cm
Height range: 44-74cm
Hoist clearance: 16cm
Mattress platform length: 195cm
Mattress platform width: 90cm
Mattress size: 195x90x10cm
Backrest angle: 0-73 degrees
Knee break angle: 0-30 degrees
Leg angle: 0-16 degrees
SWL: 225KG
