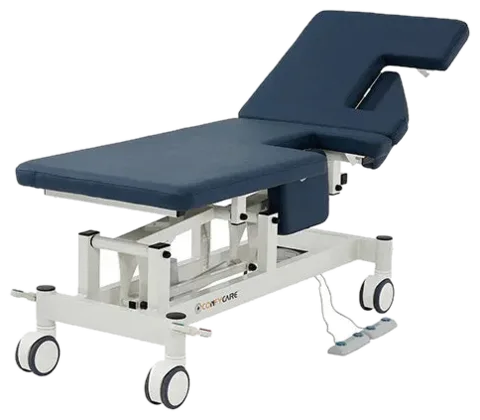

Pacific Medical Two Section Cardiology Couch — Fig. 1 — Photo

Overall length 1,950 mm, width 660 mm, height adjustable from 580 mm to 1,020 mm.

Fig. 7 — Overall dimensions (mm)

Safe working load: 250 kg
Height range: 580–1,020 mm
Sections: 2
Actuation: Electric (foot switch)

Fig. 8 — Key specifications

Pacific Medical SKU CARNB

Pacific Medical Two Section Cardiology Couch

Name: Pacific Medical Two Section Cardiology Couch
Brand: Pacific Medical
SKU: CARNB
Price: 2599 AUD
Availability: InStock

SWL 250 kgH 580–1,020 mmSections 2 sections All specifications

2-section electric hi-lo cardiology couch with dual cardiac cut-outs

$2,599 inc GST

Dispatch date confirmed when you order

No payment needed to request a quote.

01 Highlights

Safe working load: 250 kg
Height range: 580–1,020 mm
Sections: 2
Actuation: Electric (foot switch)

Electric hi-lo height adjustment by foot switch
Electric backrest

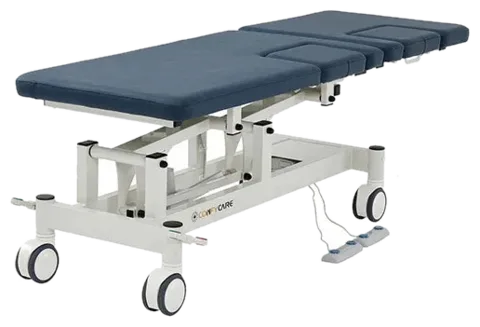

Two cardiac cut-outs for increased patient access
10 cm central lock castors
Sewn edge upholstery
Rounded frame legs

02 Specifications

Dimensions & weight
Total length	195 cm
Width	66 cm
Head section length	67 cm
Leg section length	123 cm
Cut-out size	31 cm x 25 cm
Minimum height	58 cm
Maximum height	102 cm

Capacity
Weight capacity	250 kg

Mechanism & power
Sections	2
Height adjustment	Electric (foot switch)

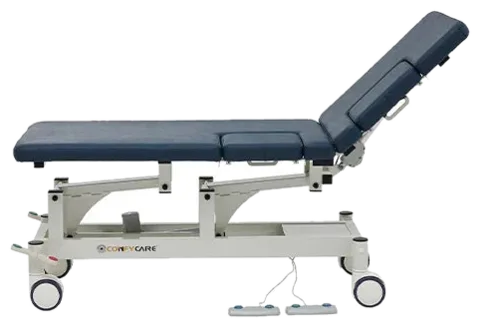

Head section (backrest) angle	Flat to +75 degrees (electric motor and foot switch)
Full height travel time	approx. 30 seconds

Construction & materials
Padding thickness	5 cm
Foam density	36 kg/m3
Upholstery	Heavy duty PVC vinyl; fire, stain, mildew, oil, water and wear resistant
Upholstery colour	Navy Blue
Castors	10 cm central lock
Braking	Central lock castors

Features
Cut-out mechanism	Manual opening, held in place mechanically

Specifications as published by the manufacturer.

Spec sheet (web page, printable)

03 Dimensions

Overall length 1,950 mm, width 660 mm, height adjustable from 580 mm to 1,020 mm.

Fig. 7 — Overall dimensions (mm). Bounding dimensions from manufacturer data. Not a product outline.

04 Manufacturer’s description

A strong two section cardiology couch with comfortable sewn edge upholstery, central lock castors, electric backrest & two special cardiac cut outs allowing increased patient access. With a sleek design, great features and foot switch as standard it is simple to operate straight from the box without any assembly required.

Features:

Electric Hi Lo operation by foot switch
Electric backrest for effortless operation

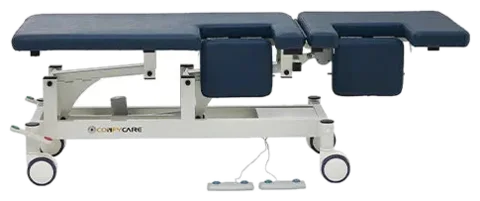

Dual cut outs for easy patient access
Comfortable sewn edge upholstery
Sleek design with rounded frame legs for safety
10cm central lock castors for safety and mobility
Reliable TiMotion motor
Durable foam padding

Specification:

Total Length: 195cm
Width: 66cm
Head section length: 67cm
Leg section length: 123cm
Cutout Size: 31cm x 25cm
Cutout Mechanism: Manual opening and held in place mechanically, very strong.
Adjustable head section through electric motor & foot switch from flat to +75 Degrees
Height range from 58cm to 102cm in approx 30 seconds
Padding thickness 5cm
Foam Density: 36kg/m3
Upholstery: Heavy duty PVC vinyl that is fire, stain, mildew, oil, water and wear resistant
Weight Capacity: 250KG

ORDER CODES:
CARNB – Navy Blue

SHIPPING: $200 for Metro cities only, Melbourne, Sydney and Brisbane. Any other cities and regional towns - please contact us for freight cost.

MAINTENANCE: Please make sure your table is serviced yearly to ensure your table functions to its optimum. Lubrication of pivot points and moving points on your table must be done on a regular basis.
